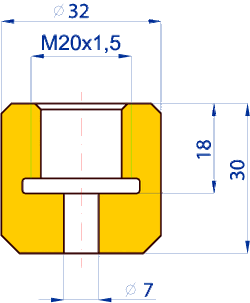

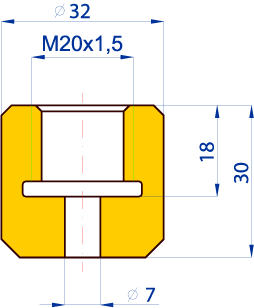

Pressure gauge tap weldment straight - NMM
| USE: | Connecting the manometer tap to the pipeline |
| Work pressure: | PN 100 |
| Operating temperature: | - 20 to + 150 °C |
| Material: | Carbon unalloyed steel of group 1 according to ČSN EN 288-3, without surface treatment |
| Sealing: | 17 x 6,5 x 2 (Cu) |
| Order example: | WELD NMM 20.1 (.0 - without gasket, .1 - with gasket) |
| Note: | Upon agreement, it can be supplied with an inspection document according to ČSN EN 10204. |
