Electric preheaters
Electric preheaters for natural gas preheating in natural gas regulation stations of the EPA type have been supplied by our company since 1994 mainly for the Czech and Slovak markets.
The working fluid can be natural gas, natural gas and hydrogen mixture (H2 content is limited to 25% [volume]). Direct contact between gas and heating rods causes heat transmission.
The electric preheater is equipment group IIA acc. to EN IEC 60079-0 ed.5 and the preheater is intended for working in potentially explosive atmospheres, Zone 2 acc. to EN IEC 60079-10-1 ed.3. The preheater is certified by notified body acc. to Directive 2014/34/EU (ATEX).
So far, our company has produced more than 1,600 pcs of EP-type electric gas preheaters with electric powers of 2, 6, 12 and 18 kW for nominal pressures of PN 40, PN 63 and PN 100 and operating flow rates from 45 to 520 m3/h.
We also supply electric nitrogen preheaters with 0.7 to 6 kW and a maximum operating pressure of 50 kPa, which are used in coking plants.
| TYPE | INPUT POWER | RANGE OF MAXIMUM OPERATING FLOWS Qpmax | NOMINAL LIGHT PRESSURE CLASS | PICTURE CATALOG SHEET |

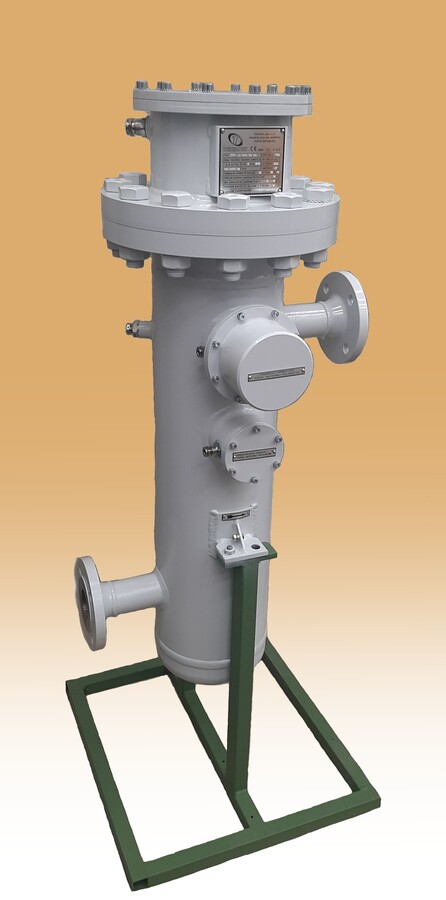

| EPA The electric gas preheater is designed for preheating natural, natural gas and hydrogen mixture (H2 content is limited to 25% [volume]) in gas regulation stations before reducing the gas pressure to a lower value. Power voltage: EP 02: 230 V 50 Hz EP 06, EP 12, EP 18 3 x 400 V 50 H |
2 kW 6 kW 6 kW 6 kW 6 kW 12 kW 12 kW 12 kW 12 kW 18 kW 18 kW 18 kW 18 kW |
50 m3/h 45 m3/h 50 m3/h 190 m3/h 220 m3/h 45 m3/h 190 m3/h 220 m3/h 520 m3/h 45 m3/h 190 m3/h 220 m3/h 520 m3/h |
DN 25 PN 40 DN 25 PN 63, PN 100 DN 25 PN 40 DN 50 PN 63 DN 50 PN 40 DN 25 PN 63 DN 50 PN 63 DN 50 PN 40 DN 80 PN 40 DN 25 PN 63, PN 100 DN 50 PN 63 DN 50 PN 40 DN 80 PN 40 |
   |
| EP 06S The electric preheater is intended for preheating nitrogen and is mainly used in coking plants. Maximum allowable pressure: 10 kPa Protection: IP 54 Power voltage: 3 AC, 400 V, 50 Hz |
max. 6 kW, 3 heating elements 2 kW |
200 m3/h | DN 50 PN 16 Maximum pressure: 0.1 bar |
