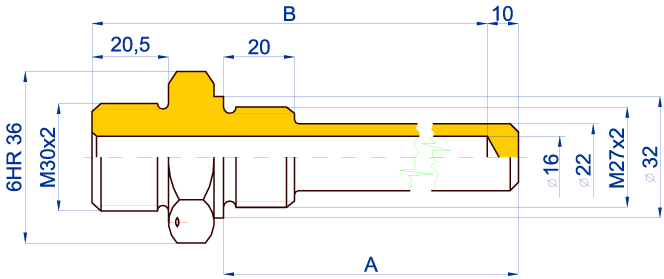

Threaded well of the registration thermometer - RJS
| TYPE | NOMINAL LENGTH OF THERMOMETER STEM | A | B |
| RJS 125 | 125 | 140 | 163 |
| RJS 160 | 160 | 175 | 198 |
| RJS 200 | 200 | 215 | 238 |
| USE: | Connecting the stem of the registration thermometer to the weld on the pipe | ||
| Work pressure: | PN 63 | ||
| Operating temperature: | - 20 to + 150 °C | ||
| Material: | Carbon unalloyed steel, galvanized | ||
| Can be delivered by agreement: | - with inspection document according to ČSN EN 10204 - from another material (corrosion-resistant steel, etc.) |
||
