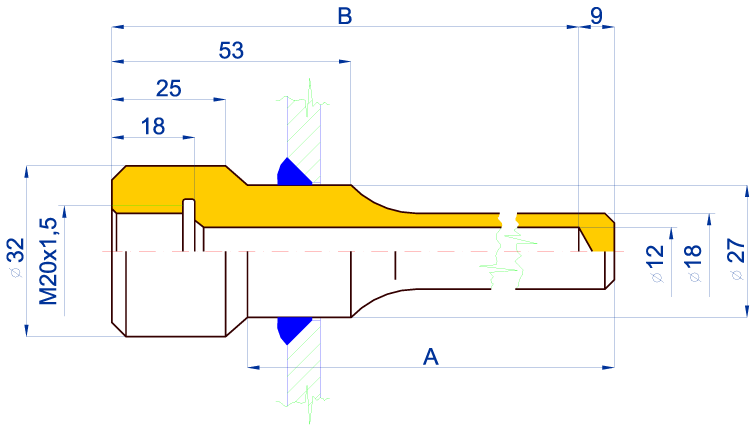

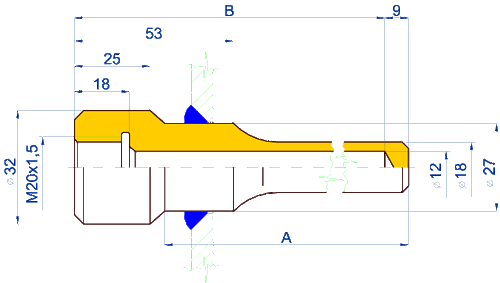

Welding thermometer well - TJZ
| TYPE | NOMINAL LENGTH OF THERMOMETER STEM | A | B |
| TJZ 100 | 100 | 91 | 110 |
| TJZ 125 | 125 | 116 | 135 |
| TJZ 160 | 160 | 151 | 170 |
| USE: | Welding in the pipe for connecting the indicating thermometer | ||
| Work pressure: | PN 40 | ||
| Operating temperature: | - 20 to + 150 °C | ||
| Material: | Carbon unalloyed steel of group 1 according to ČSN EN 288-3, without surface treatment | ||
| Can be delivered by agreement: | - with inspection document according to ČSN EN 10204 - execution to PN 63 |
||
