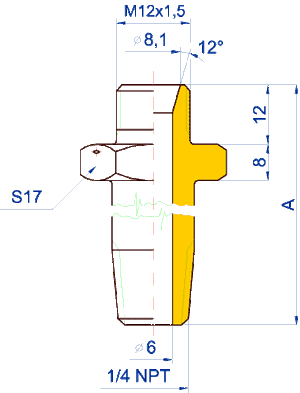

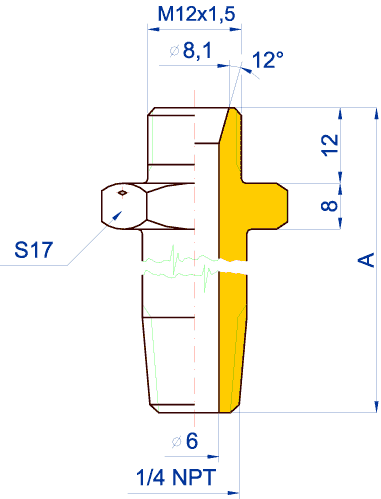

Screwing - P
TYPE | A |
141233 | 36 |
141270 | 70 |
Use: | Reducing outlet thread 1 NPT to pipe with external f 6 mm |
Work pressure: | PN 63 |
Operating temperature: | - 20 to + 150 °C |
Material: | Carbon unalloyed steel, galvanized |
Part of the supply: | - Gasket ring DN 5 - Sliding nut DN 5 - galvanized with a hole for sealing |
Order examply: | SCREWING P 141270 |
Can be delivered by agreement: | - with inspection document according to ČSN EN 10204 - from another material (corrosion-resistant steel, etc.) |
