Screwing - PM

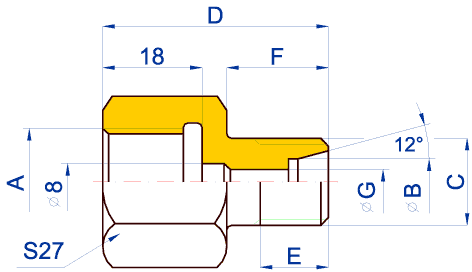

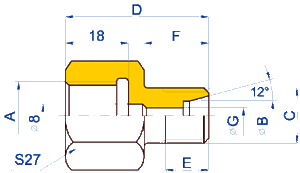

TYPE | A | EXTERNAL f OF PIPE B | C | D | E | F | f G |
PM 20P/6 | M20x1,5 | 6 | M12x1,5 | 38 | 10 | 12 | 5 |
PM 20L/6 | M20x1,5L | 6 | M12x1,5 | 34 | 10 | 12 | 5 |
PM 20P/8 | M20x1,5 | 8 | M14x1,5 | 34 | 10 | 12 | 6 |
PM 20L/8 | M20x1,5L | 8 | M14x1,5 | 34 | 10 | 12 | 6 |
PM 20P/10 | M20x1,5 | 10 | M16x1,5 | 36 | 11 | 14 | 8 |
PM 20L/10 | M20x1,5L | 10 | M16x1,5 | 36 | 11 | 14 | 8 |
PM 20P/12 | M20x1,5 | 12 | M18x1,5 | 36 | 11 | 14 | 8 |
PM 20L/12 | M20x1,5L | 12 | M18x1,5 | 36 | 11 | 14 | 8 |
Use: | Reducing the output thread M20x1.5 P (L) to a pipe with an external f 6, 8, 10 or 12 mm. (Connection of pulse pipes to manometer valves, registration devices, etc.) | ||||||
Work pressure: | PN 63 | ||||||
Operating temperature: | - 20 to + 150 °C | ||||||
Material: | Carbon unalloyed steel, galvanized | ||||||
Part of the supply: | - Gasket ring - Galvanized sliding nut with hole for sealing - Gasket 17x6.5x2 ( Cu ) |
||||||
Order examply: | SCREWING PM 20 L / 8 | ||||||
Can be delivered by agreement: | - with inspection document according to ČSN EN 10204 - from another material (corrosion-resistant steel, etc.) |
