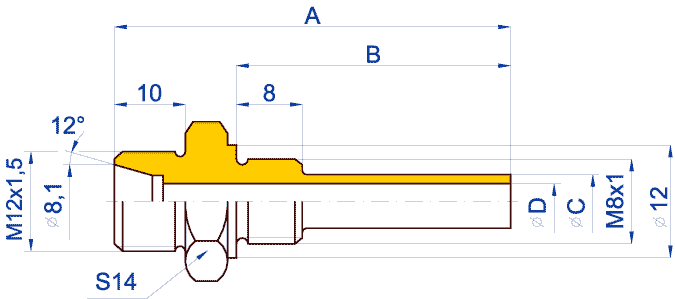

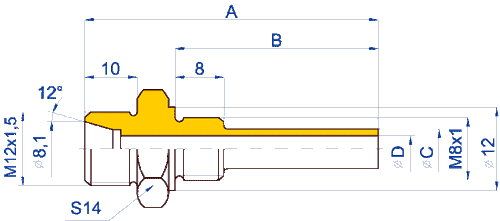

Screwing - T
TYPE | A | B | f C | f D |
812250 | 38 | 20 | 3 | 1,5 |
812650 | 48 | 30 | 5 | 3 |
Use: | Pressure outlet of the gas meter DA, DB Premagas for a pipe with an outer diameter of 6 mm | |||
Work pressure: | PN 63 | |||
Operating temperature: | - 20 to + 150 °C | |||
Material: | Carbon unalloyed steel, galvanized | |||
Part of the supply: | - Gasket ring DN 5 - Sliding nut DN 5 - galvanized with a hole for sealing - Gasket 12x8x1 ( Cu ) |
|||
Order example: | SCREWING T 812250 | |||
Can be delivered by agreement: | - with inspection document according to ČSN EN 10204 - from another material (corrosion-resistant steel, etc.) |
