Threaded thermometer well - TJS

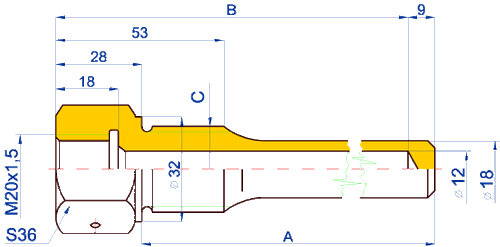

TYPE	NOMINAL LENGTH OF THERMOMETER STEM	A	B	C
TJS M100	100	91	110	M 27x2
TJS M125	125	116	135	M 27x2
TJS M160	160	151	170	M 27x2
TJS G100	100	91	110	G 3/4
TJS G125	125	116	135	G 3/4
TJS G160	160	151	170	G 3/4
Use:	Connecting the indicating thermometer to the weld on the pipe
Work pressure:	PN 63
Operating temperature:	- 20 to + 150 °C
Material:	Carbon unalloyed steel
Design:	Galvanized
Can be delivered by agreement:	- with inspection document according to ČSN EN 10204 - from another material (corrosion-resistant steel, etc.)
