Threaded well PRO Pt 100 - TJSP

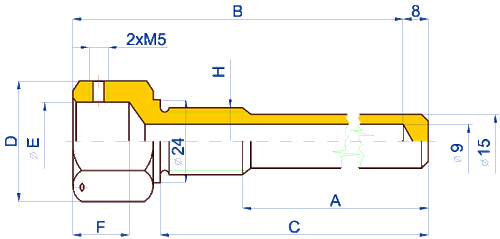

TYPE	SENSOR LENGTH	A	B	C	D	f E	F	H
TJSP 160	160	125	162	145	6HR 30	20,5	19	M 20x1,5
TJSP 250	250	215	252	235	6HR 30	20,5	19	M 20x1,5
USE:	Connecting the temperature resistance sensor Pt 100 to the weld on the pipe
Work pressure:	PN 63
Operating temperature:	- 20 to + 150 °C
Material:	Carbon unalloyed steel, galvanized
Part of the supply:	2 pcs of M5 screws to secure the sensor
Can be delivered by agreement:	- with inspection document according to ČSN EN 10204 - from another material (corrosion-resistant steel, etc.)
